Great Plains Sub-Soiler

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Designed for deep vertical tillage, the Great Plains Inline Sub-Soiler shatters yield-robbing compaction layers created by horizontal tillage tools such as plows, disks, and sweep implements. With a working depth of 10" to 16", this fall tillage tool resets the soil profile and maintains uniform soil density with minimal topsoil disturbance and no residue burial.

The Sub-Soiler’s frame features high-tensile, 3/8" wall tubing for added strength and durability. Units are available in 24", 30", 36", 38", or 40" shank spacings. Shanks range in number from 3 on 30", 36", 38", and 40" spacing up to 12 on 24" spacing. Choose from two shank options: ¾" and 1¼". The ¾" no-till shank and no-till point provide maximum shatter with minimum surface disturbance. The 1¼" straight leg shank creates more surface disturbance for minimum tillage. To achieve the full benefits of vertical tillage, it is important to select a point design that promotes horizontal fracture without blowout. The Sub-Soiler is offered with several different point options to fit a variety of conditions and needs.

Model Numbers

SS1300, SS1310, SS1700, SS1710, SS1800, SS2000

Product Description

Destroy Layers

Specifications

Model

Sub Soiler

Category Name

Agriculture

Sale Type

New

Manufacturer

Great Plains

specs

MODEL INFO	Sub-Soiler
MODELS	SS1300	SS1310	SS1700	SS1710	SS1800	SS2000
SHANK SPACING	24", 30"	36", 38", 40"	24", 30"	36", 38", 40"	30", 36", 38", 40"	24", 30", 36", 38", 40"
NUMBER OF SHANKS	3, 4, 5, 6, 7, 8	3, 4	6, 7, 8, 9	5, 6, 7	6, 7	7, 8, 9, 10, 12
TIRES	20.5 x 8 10-ply (gauge wheels)
WEIGHT (approx. lbs.) No-Till Shank \| Auto-Reset	2,339 - 3,778	3,140 - 5,914	2,925 - 4,148	4,260 - 6,408	4,850 - 5,125	5,840 - 7,400
ENGINE H.P. REQ (min)	195+	125+	250+	N/A	230+	363+
DIMENSIONS
TILLAGE WIDTH	7' 6" - 16'		15' - 23' 4"		17" 6' - 20'	20' - 25' 4"
TRANSPORT WIDTH	11' 2" - 16' 5"		13' 4" - 21' 2"		12' 9" - 13' 1"	12' 9" - 15' 5"
TRANSPORT HEIGHT	N/A
TILLAGE INFO
CENTER SECTION	N/A	N/A	N/A	N/A	N/A	N/A
1ST WING SECTION	N/A	N/A	N/A	N/A	N/A	N/A
2ND WING SECTION	N/A	N/A	N/A	N/A	N/A	N/A

product features

Point Options

Points for the 1¼" Straight-Legged Shanks are available in 2" or 7" widths, and with or without fins (fins minimize blow-out). The 2"-wide point is the least aggressive, while the 7"-wide point is the most aggressive and is used to cover more residue. A no-till point that is approximately 10" wide is used with the ¾" No-Till Shank. The no-till point minimizes surface disturbance and maximizes soil-structure-shatter below the surface. It also increases the amount of exposed surface residue and buries very little trash.

Optional Berm Conditioners

With 1" solid rods, the 16"-diameter berm conditioners mounted to each shank help provide a level surface, enabling single-pass seedbed preparation.

ADJUSTABLE GAUGE WHEEL

A screw jack makes adjusting the gauge wheels simple and easy.

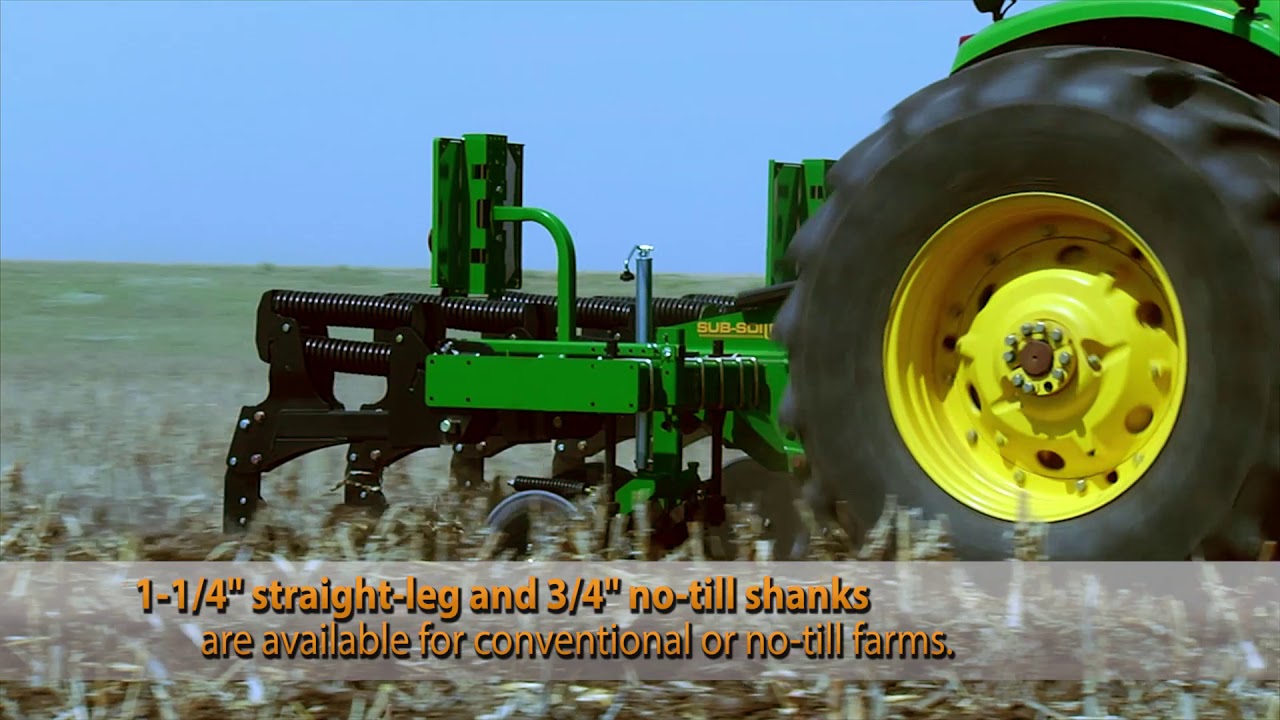

2 Different Shank Options

Options include a 1¼" Straight-Legged Shank or a ¾" No-Till Shank. The no-till shank is not as aggressive as the straight-legged shank in turning the soil over and covering residue. In most soil conditions, the no-till shank only leaves a shank slot exposed on the soil surface and shows a gentle uplifting of the earth between shanks. Therefore, it should be used where less ground disturbance is desired. Replaceable wear shins are standard for either shank option.

Choice of Auto-Reset or Shear Bolt Shank Mounts

With 3,000 lb. trip force, the Auto-Reset Shanks provide stop-free operation in areas where sub-surface obstructions exist. Alternatively, the Shear Bolt Mounts provide obstruction protection at a lower purchase cost than the Auto-Reset Shanks.

20" Heavy-Duty Utility Coulters
