Great Plains 1206NT DRILL
Great Plains delivers a highly economical seeding solution in the versatile 1206NT Drill, which can simultaneously seed up to three different seeds at different rates.
With 06 Series openers, the 1206NT builds off the success of its predecessor, the 1205NT. The 1206NT comes standard with a main seed box. Its 4-speed gearbox and fluted feed meter gently and precisely meter a wide variety of seed. An optional native grass box can be added to meter the fluffiest native grass. Smaller seeds, like clovers, can be seeded by adding a small seeds box. This adds up to three boxes planting three seeds at three different rates.
End wheel design makes the 1206 extremely maneuverable and reliable. By keeping all ground-working components in line with the end wheels, openers are prevented from sideloading when working on rolling terrain and contours. Additional features that increase the convenience and productivity of the 1206 End Wheel are hydraulically-adjustable coulter depth and a mechanical clutch that disengages when the drill is raised.
|
Model Numbers
1206NT |
|
Product Description 12' No-Till Drill |
|
MODEL INFO |
12' END WHEEL NO-TILL DRILLS |
|---|---|
|
MODELS |
1206NT |
|
TYPE |
End Wheel Pull-Type |
|
PRIMARY DESIGN |
No-Till |
|
ROW SPACINGS |
7.5" (19.1cm) |
|
NUMBER OF OPENERS |
19 |
|
TIRE SIZE |
297/75R 22.5 Rib Truck Tires |
|
H.P. REQUIREMENTS (min) |
75+ |
|
WEIGHT (approx. range) |
5,965 |
|
DIMENSIONS | |
|
WORKING WIDTH |
12' (3.66m) |
|
WIDTH (transport) |
15' 7" (4.74m) |
|
LENGTH (transport) |
13' 7" (4.14m) |
|
CLEARANCE (transport) |
13.5" (34.3cm) |
|
HEIGHT (transport) |
6' 7" (2.13m) |
|
OPENER SERIES |
06 Series |
|
COULTER |
5/8" Turbo 5/16" Fluted 3/4" Wavy |
|
CAPACITIES | |
|
MAIN BOX CAPACITY |
2.4 bu./ft. |
|
SMALL SEED BOX |
2.62 bu (92.3L) |
|
NATIVE GRASS BOX |
N/A |
|
FERTILIZER |
12 cu ft (.34m3) |
|

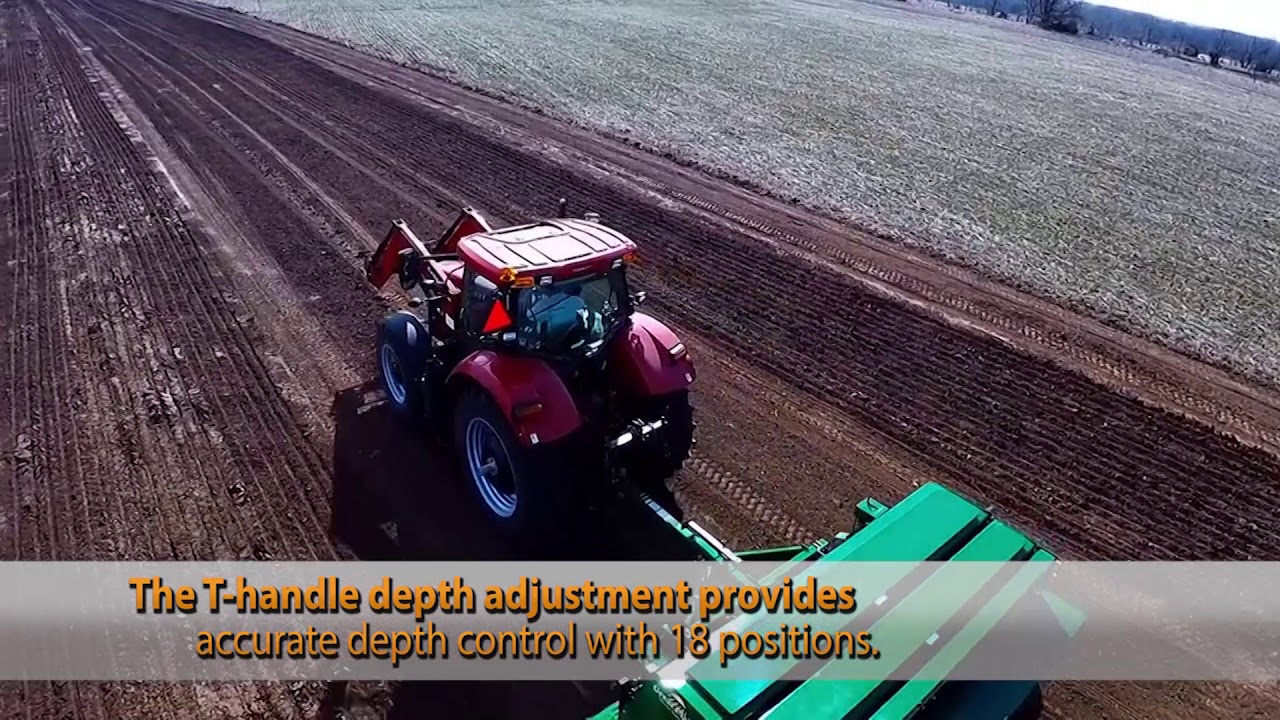

T-handles offer 18 different positions for accurate depth control. |
|
Choices include, from left, single 3"x13" double rib* press wheels; single 3"x13" center rib press wheels; single 2"x13" smooth press wheels; 1"x12" double-V press wheels; and wedge-style press wheels that create a pinching action to close the trench. (*Only available by special order through Parts) |
|
This allows three different seeds to be planted at separate rates and different depths at the same time. Optional boxes include native grass or fertilizer, and small seeds. |
|
Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage. |
|
Allow you to easily add weight for better penetration in tough no-till conditions. |
|
Lets you service all the coulter pivot components from two locations. |
|
Large end wheels provide excellent ground drive to the seed meters. Lockout hubs save drive components from wear. |
|
Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes. |
|
The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter that cuts residue and prepares a mini seedbed for the trailing double-disc opener. Opener discs are 13.5" in diameter with 4mm-thick blades, 205 triple-lip sealed bearings, and a ¼" opener disc lead. Our unique seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place. |
