Great Plains PL5800
Designed with operator experience and profitability in mind, the new Great Plains PL5800 Planter delivers simplicity in operation and accuracy in planting. The PL5800 features a new 5000 Series Row Unit with an all-new Great Plains Air-Pro® Meter and seed delivery system to ensure precise singulation and planting accuracy, and excellent seed-to-soil contact. This model is offered with the optional Individual Row Control (IRC Electric Drive) to maximize yield potential and cut seed costs. IRC offers the benefit of variable-rate planting with turn compensation and section control and reduces maintenance by eliminating all chains and shafts. To provide proper singulation, a 66% larger seed pool reservoir, combined with a 92% larger seed inlet opening, help keep the meter full at higher speeds. Available in single-row and twin-row configurations, this front-folding planter also comes with new, shorter closing wheel mounts (on select row spacings) to ensure proper seed-to-soil contact and furrow closing while planting.
The PL5800’s frame has been simplified and features redesigned wing toolbars that supply meter air pressure, eliminating the need for a dedicated air manifold above the toolbar. The new, innovative dual-fan air system delivers a wide variety of seeds to the meters—even on difficult terrain.
To simplify operator interfaces and planter monitoring, the PL5800 uses a new WSMT3 Control System. The planter is offered with a Topcon X35 monitor, but is also ISO-certified so other monitors can be used. Like all Great Plains planters, Row-Pro™ systems are available to automatically maintain the proper down pressure on the row unit, giving producers peace of mind.
|
Model Numbers PL5800 |
|
Product Description 16-Row Bulk-Fill |
|
MODEL INFO |
16-Row, Bulk-Fill |
|---|---|
|
MODELS |
PL5800 |
|
ROW SPACINGS |
15", 20", 30", 36", TR30", TR36" |
| NUMBER OF ROWS | 31, 24, 16, 12, 32, 24 |
|
*ENGINE H.P. REQUIREMENTS (min) |
165-275 |
| WEIGHT (lbs.) |
15,800 - 19,940 |
| DRIVE OPTIONS |
IRC (Individual Row Control electronic drive) |
|
DIMENSIONS | |
|
PLANTING WIDTH |
38' 10" |
|
WIDTH (no markers) |
40' |
|
WIDTH (transport) |
13' 6" |
|
HEIGHT (transport) |
9' 11" w/o markers, 11' 3" w/markers |
|
CAPACITIES | |
|
SEED CAPACITY |
82 bu Poly Hopper (2,890 L) 150 bu Poly Hopper (5,286 L) |
|
FERTILIZER CAPACITY |
400 gal. total capacity (1,514 L) (Note: Will not work on 150-bushel hopper) |
|
A simplified frame design features redesigned wing toolbars that act as meter air pressure manifolds, eliminating the need for a dedicated air manifold above the toolbar. |
|
This new, simplified operator interface features enhanced diagnostic capabilities. The optional Topcon X35 monitor is fully ISO-compatible with all current Great Plains control features unlocked. |
|
New, shorter closing wheel mounts, available on select row spacings, achieve appropriate seed-to-soil contact and closing accuracy around curves and contours. Alongside the newly-designed meter, the new row unit provides excellent singulation and seed placement for a variety of crops. |
|
Choose either Individual Row Control (IRC) for consistent in-row seed spacing, even on tight turns; ground drive with a contact drive wheel; or hydraulic drive. |
|
New, 5-cell and 30-cell hemp seed disc that meters seed accurately. |
|
Choose either 82-bu. or 150-bu.(inset) hoppers. 82-bu. hoppers can be equipped with two side tanks for liquid fertilizer. A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments. |
|
The new 5000 Series Air-Pro Meter offers industry-leading singulation with its simple, positive air pressure meter. Optional IRC reduces maintenance by eliminating all chains and shafts, while the individual meter control saves seed through on-demand variable rate and section control. IRC ensures equal seed spacing to maximize field potential, even when navigating curves and field contours. A larger meter seed pool keeps the meter full at higher speeds and provides excellent singulation for a wide variety of crops, including corn, soybeans, peanuts, and more. |
|

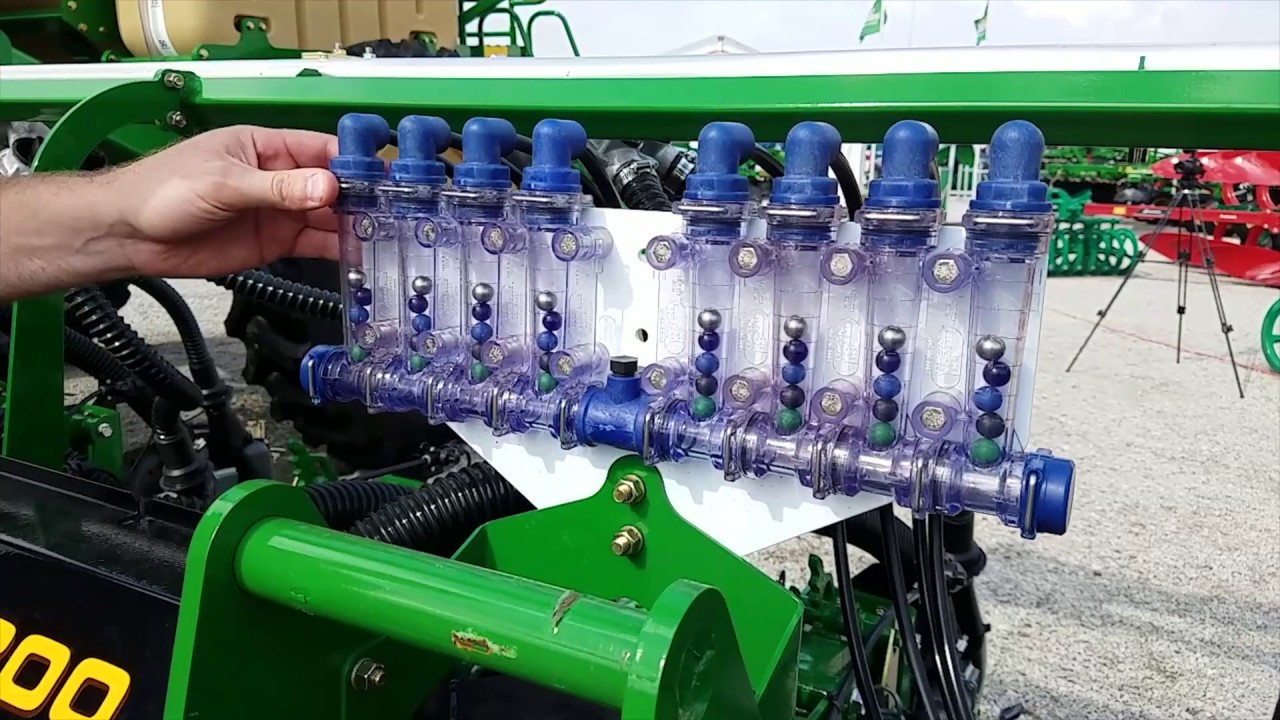

A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments, even across uneven terrain. |
|
Choose either the 2-point hitch or the hydraulic tongue hitch (inset) for hooking to tractors without 3-point lift arms. |
